This bike is currently out of stock.

...And Many Ways To Pay...

  • "A supremely comfortable and versatile drop-bar bike"
    BikeRadar
  • "Classy ti frame and the overall package." - Best budget gravel bikes 2023
    Cycling News

Description

Road, gravel, or trail, the CGR Ti certainly ticks all the boxes. This highly versatile all-road explorer is designed to do it all. The premium Pro Edition features the latest iteration of Shimano's pro-proven Ultegra Di2 2x12-speed wireless electronic groupset. Di2 delivers the world's fastest electronic shifting and refined ergonomics for improved all-day comfort. Ultralight yet incredibly strong Mavic Cosmic S 42 Carbon wheels, matched with the all-terrain versatility of Schwalbe’s G-One Allround tyres, are up to any challenge, whether on tarmac or exploring the roads less travelled. All-season versatility is further enhanced by the addition of pannier rack mounts to take care of any luggage-carrying needs. Discreet mudguard mounts give you the option to fit full-length mudguards to fend off the worst of the dirt and persistent deluges.

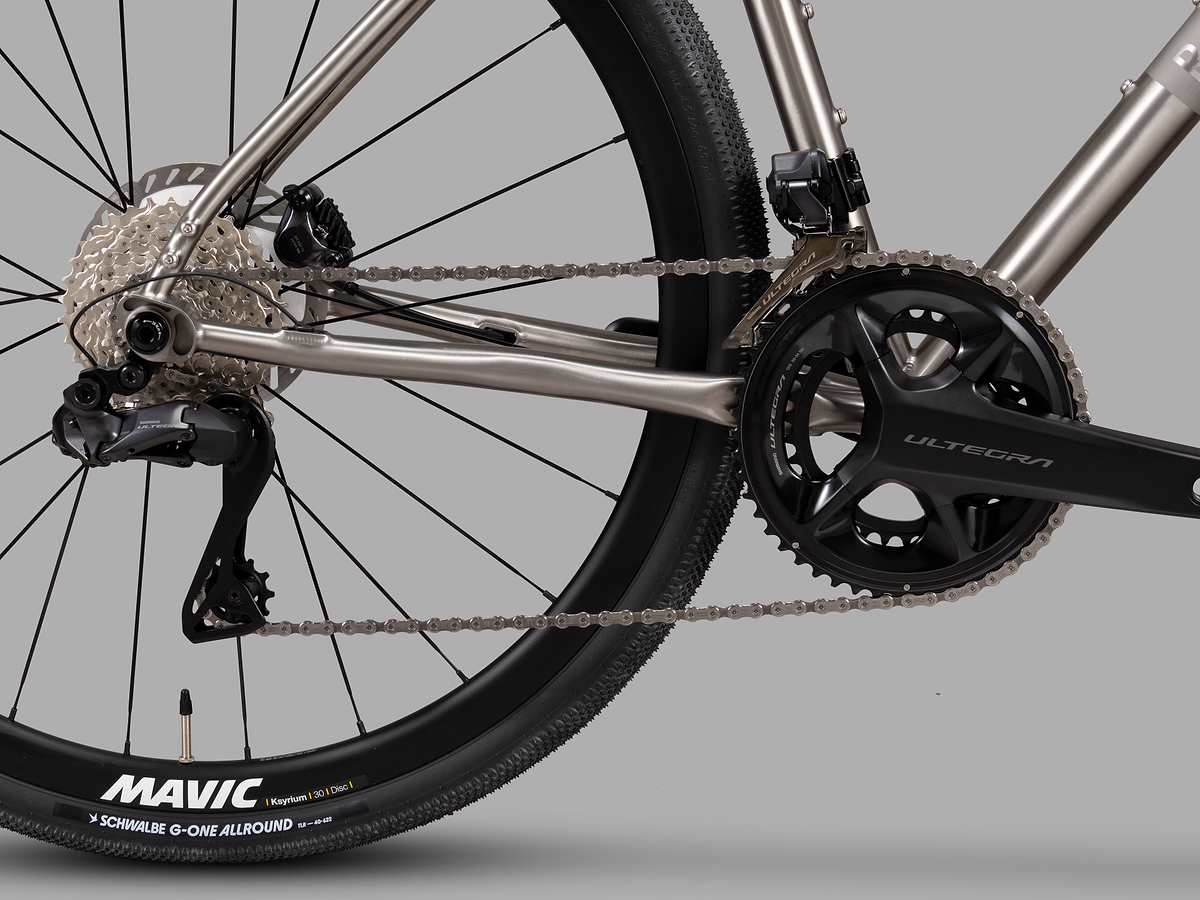

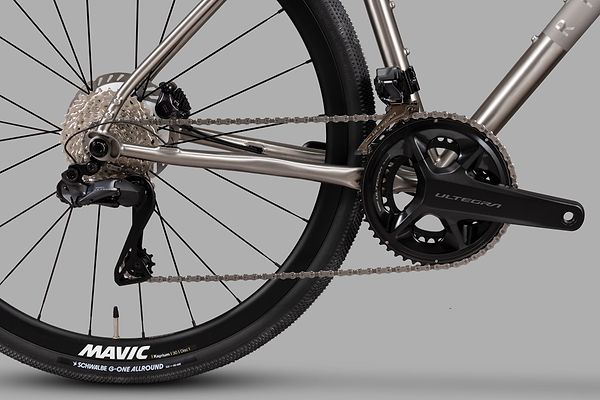

Groupset

Shimano Ultegra R8100 has been completely redesigned with all-new ergonomics, even greater brake modulation and wireless electronic shifting precision. It delivers the world’s fastest and most reliable wireless shifting and a wide gear range which means no matter how steep a climb is, it’s never outside your comfort zone. Di2 gives you instant, accurate, lightning-fast shifts every time at the push of a button. Even in the most extreme of conditions, shifting is precise and controlled. You can even change gear under heavy load while climbing or accelerating. With Di2, you are in complete control.

Groupset

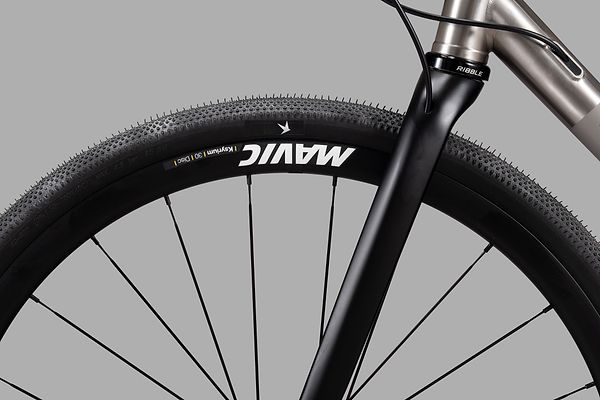

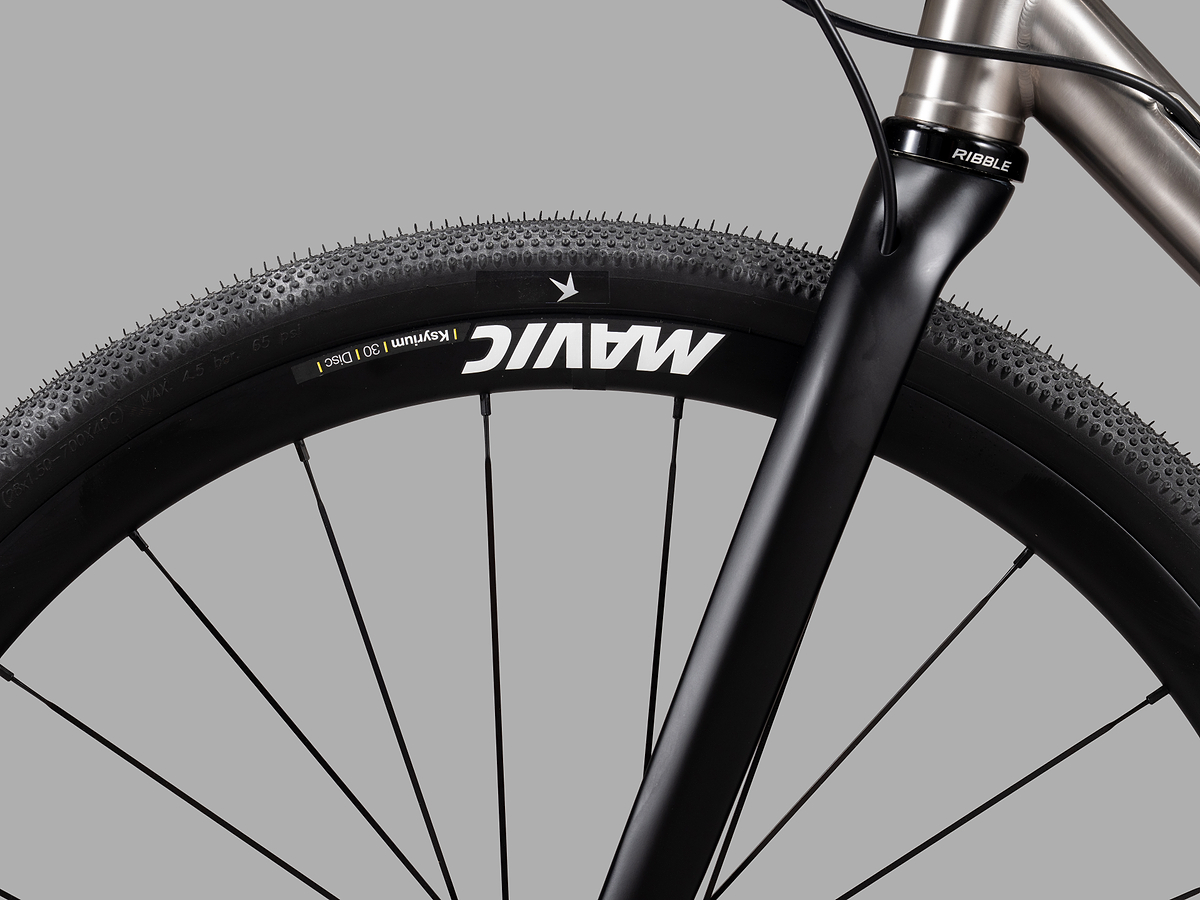

Wheelset

Accelerate and climb faster, holding speeds you could never have imagined with a high-performance wheelset that delivers the perfect balance of weight, aerodynamics, and efficiency. Mavic Cosmic S 42 wheels deliver more speed, comfort, and control for the best on-bike experience. Paired with multi-purpose Schwalbe G-One 40mm Tyres in a tan wall design, these tyres are suited to everything from dirt tracks to rapid road rides and everything in between.

*This wheelset will be supplied with white or grey decals.

Wheelset

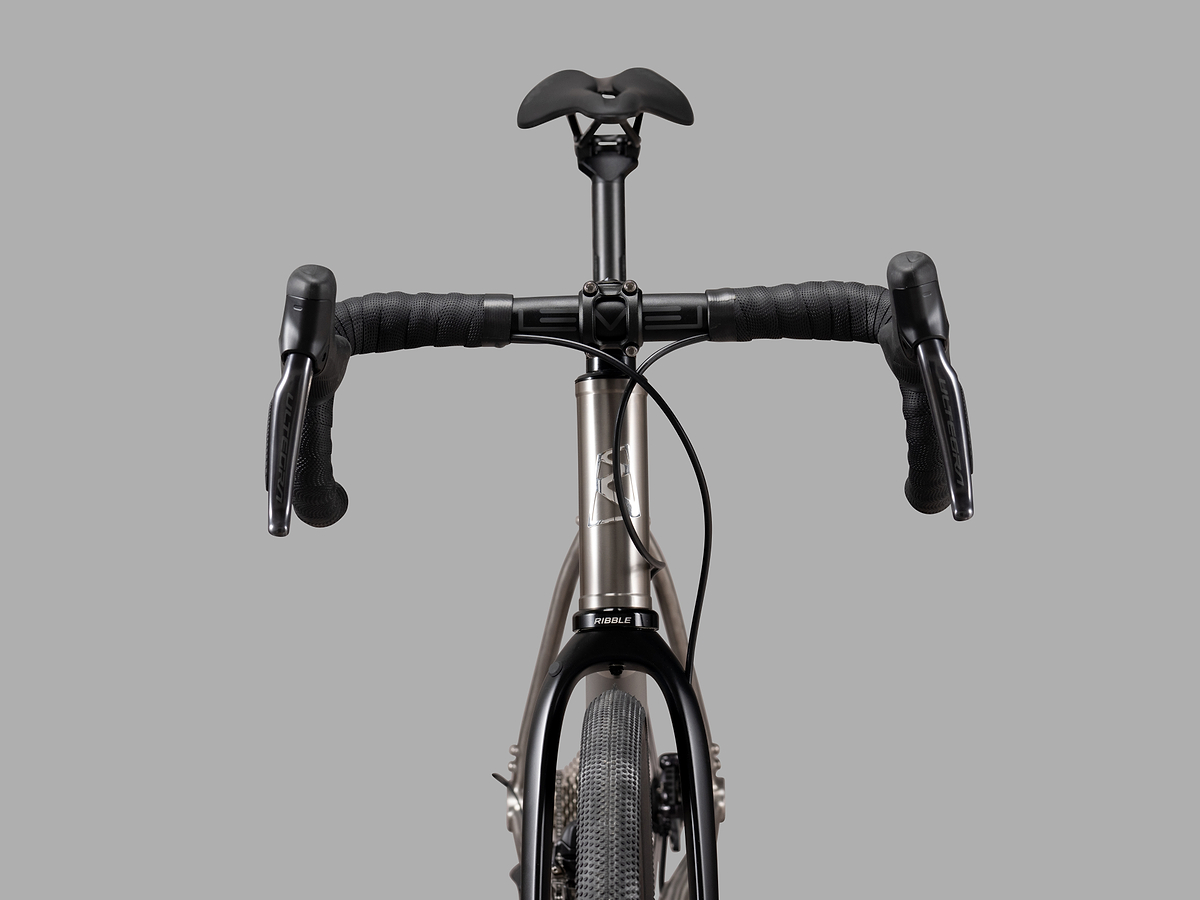

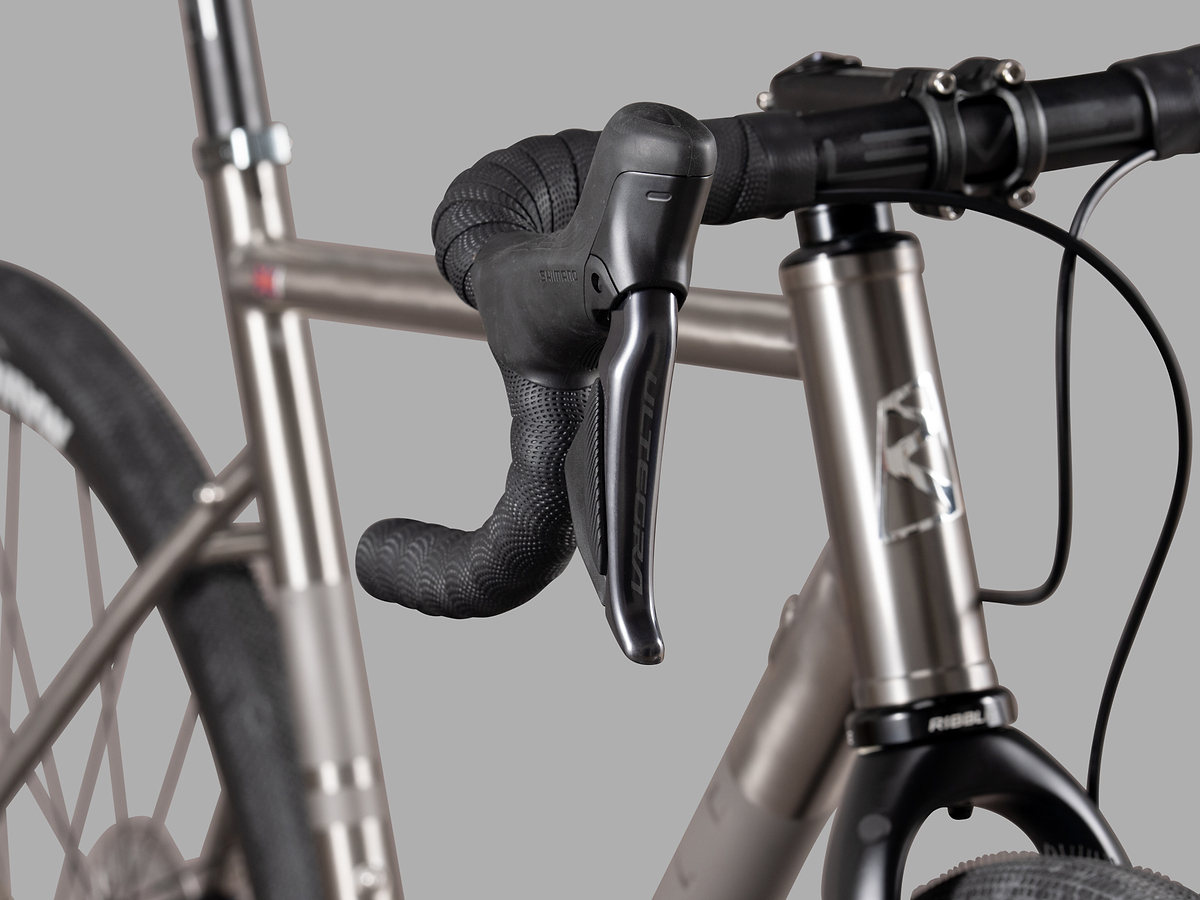

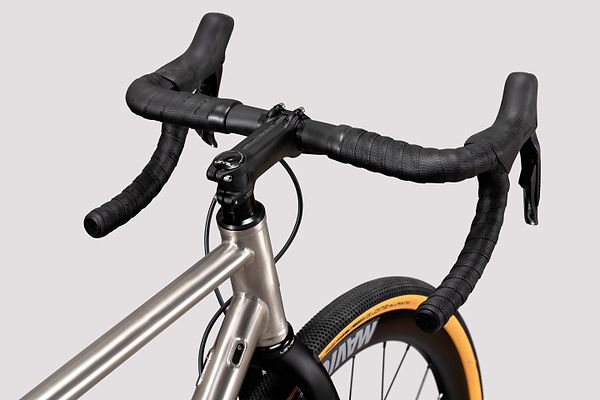

Handlebars

Ultralight LEVEL 3 carbon monocoque handlebars fitted with a comfortable LEVEL handlebar tape offer multiple hand positions for enhanced comfort and efficiency when climbing, on the flats and descending. Neatly matched with a LEVEL 3 carbon look alloy handlebar stem with Titanium hardware.

Handlebars

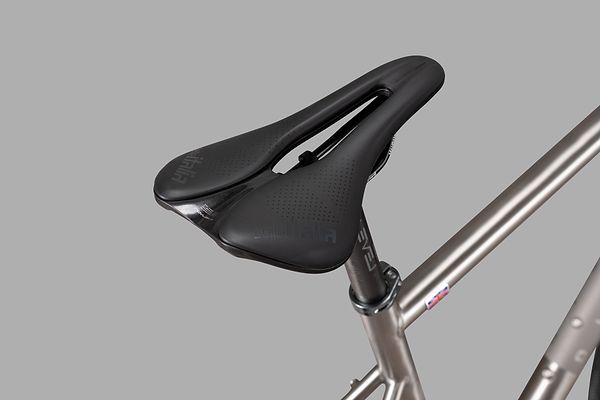

Saddle

An ultralight LEVEL 3 carbon monocoque seat post paired with a Brooks Cambium saddle constructed from vulcanised rubber offers control, durabiity and flexibility, ready for every ride scenario and any weather conditions.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'4" - 5'7" (162 - 170cm)5'7" - 5'9" (170 - 175cm)5'9" - 5'11" (175 - 180cm)5'11" - 6'1" (180 - 185cm)6'1" - 6'4" (185 - 194cm)
Wheel Size650b / 700c650b / 700c650b / 700c650b / 700c650b / 700c
A - Frame Size (mm)510530555580600
B - Top Tube (mm)530545555570590
C - Reach (mm)375377380384395
D - Head Tube (mm)140150170190210
E - Stack (mm)556568589606625
F - Head Angle (mm)71°71.5°72°72°72°
G - Wheelbase (mm)1026.51026.81031.81042.51053
H - Chainstay (mm)435435435435435
I - Seat Angle (mm)74°73.5°73°72.5°72.5°
Front Centre599.4600605610629

Frequently Asked Questions

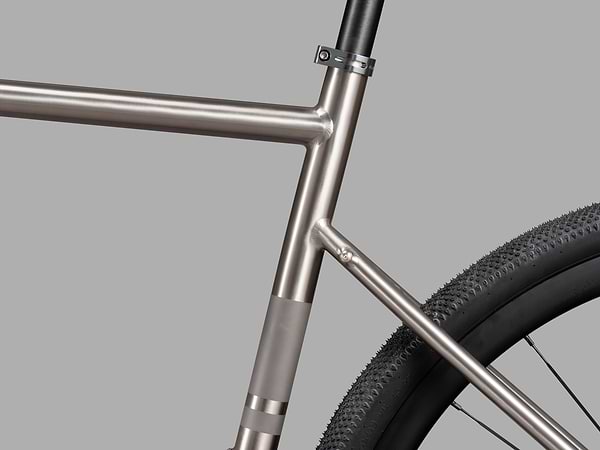

The 3AL/2.5V frame weighs 1600g and the fully monocoque forks 470g. An Enthusiast build with Ultegra weighs in at approximately 9.8kgs (size medium).

The frame is guaranteed against manufacturing defects for a period of 3 years. The standard manufacturer's warranty covers all other components.

Yes. All cables run internally through the frame for a super-clean look and protection from the elements.

There's ample clearance for 650b x 47mm or 700c x 45mm tyres (manufacturer/tread profile dependant) without mudguards or 40mm with guards fitted.

The CGR Ti includes discreet mounts to fit a rear pannier rack, handling all your luggage-carrying needs.

Yes. Discreet eyelets on the frame and forks offer compatibility with full-coverage mudguards. Please note that the maximum tyre clearance with mudguards fitted is 40mm.

Two. Situated on the seat tube and down tube.

Yes. Thanks to its fully internal cable routing the CGR Ti is fully compatible with Shimano Di2 electronic groupsets.

We recommend a total system weight of 120 kg/264 lbs (bike+rider+luggage).

The CGR Ti requires a traditional 68mm BSA threaded style of bottom bracket.

It's compatible with 27.2mm round seat posts. The seat collar is 31.8mm.

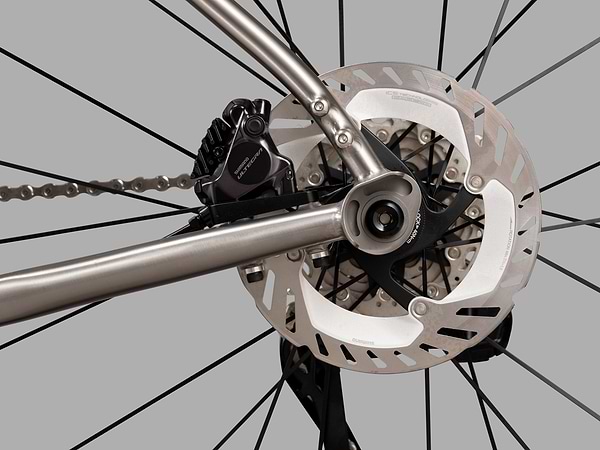

It's designed to accept the latest flat-mount disc brakes

The frame requires M12x120mmx1.5 front and M12x173mmx1.75 rear thru-axles.

Due to the many different systems people use, we don't supply pedals with bikes. However, you can add a set to your order when you configure the bike.
